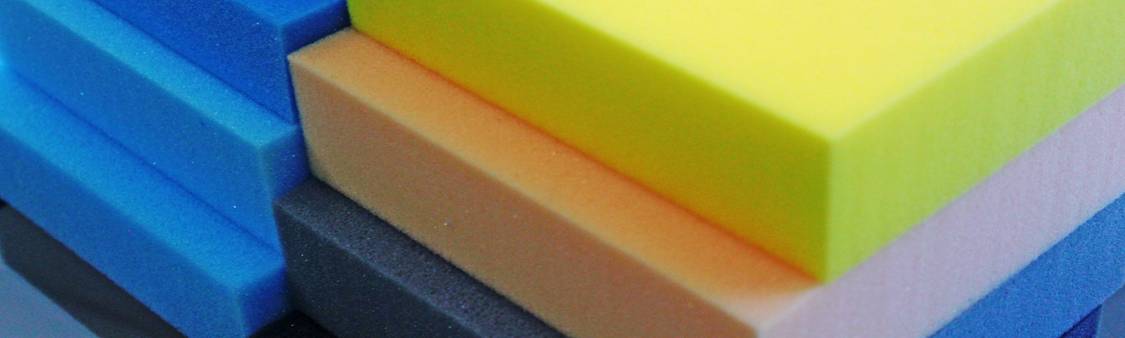

INOAC PU FOAM

From its humble beginnings, polyurethane foam continues to improve quality of life. Because it is the most versatile polymer, it can be tailored to fit any application by altering the makeup of the foam’s raw materials. Whether providing superior cushioning, improved automobile safety, better noise control, protection for our soldiers, or faster healing of wounds. INOAC is the global leader in custom tailoring polyurethane foam to turn ideas in reality.

Product outline

Material- Urethane

Intended use - Transportation equipment, industrial machinery, office electronic equipment, precision machinery, furniture, apparel, household electrical appliances, acoustic products, cosmetic and sanitary products, daily commodities, and materials for agricultural and fishery industries.

Technology - Special treatment

Office handling inquiries:

Foam Products Division

0566-97-8962

HAPPOHIN@inoac.co.jp

Features

1. Superior filtration performance
Due to polyurethane foam's 3D cell structure, high porosity, and complete open-cell structure, it is possible to obtain high dust collection rates with low pressure losses and to achieve superior filtration performance.

2. It is possible to select cell sizes depending on intended use. Uniform size cells with mirrors completely removed are available, and a wide range of cell sizes from 8 to 70 pieces /25 mm are offered.

3. Superior chemical properties such as chemical resistance
MF Series is intended for applications that require oil resistance, and CF Series is intended for applications that require watertightness (moist heat aging resistance).

4. Easy processing
Similarly to the case of standard COLORFOAM and MOLTOPREN, products, it is possible to perform complicated processing, not only by carrying out general processing such as slicing, vertical cutting, and die cutting, but also by utilizing special equipment.

5. It is possible to perform washing and recycling by means of water and neutral detergent.

Reference Data

MF Series Physical Properties

Slide To RIGHT For Further Details

Product Name	Density (kg/㎥)	Number of Cells (pieces / 25mm)	Tensile Strength （kPa）	Elongation （%）	Standard Color
MF-8	30±5	8±2	50≦	100≦	Black, yellow
MF-13	30±5	13 ＋3 －2	100≦	150≦	Black, yellow
MF-20	30±5	20±4	100≦	200≦	Black, yellow
MF-30	30±5	30±4	100≦	200≦	Black, yellow
MF-40	30±5	40±4	150≦	200≦	Black, yellow
MF-50	30±5	50±5	150≦	200≦	Black
MF-55	57±5	55±10	150≦	200≦	Black, gray
MF-80A	75±10	70≦	200≦	200≦	Yellow, cream
MF-DS	83±8	90≦	120≦	250≦	Dark black

CF Series Physical Properties

Slide To RIGHT For Further Details

Product Name	Density (kg/㎥)	Number of Cells (pieces / 25mm)	Tensile Strength （kPa）	Elongation （%）	Standard Color
CFH-13	30±3	13±3	78≦	50≦	Black
CFH-20	30±3	20±3	98≦	100≦	Black
CFH-30	30±3	30±3	147≦	100≦	Black
CFH-40	30±3	40±3	147≦	100≦	Black
CFH-50	30±5	45≦	177≦	100≦	Black
CFH-S	72±5	68±8	196≦	80≦	Gray, yellow

Characteristics common to PU foams:

Lightweight

Tough

Excellent stability in water

Excellent chemical resistance

Excellent flexibility within wide temperature range

Excellent temperature stability

Good flexibility and superior workability

Excellent sound absorption

Extremely resistant to oil and heat

Characteristics of wide assortment depending on foam type and intended application:

Hardness

Density

Strength

Color

Compression Set

Rebound

Electrical conductivity

Cellular Structure

Colorfoam / Moltopren

Slide To RIGHT For Further Details

ColorFoam

Product Name	Density (kg/m3)	Hardness (N)	Tensile Strength (kPa)	Elongation (%)	Compression Set (%)	Color	Characteristics
ECA	26±2	127.5±24.5	78≦	120≦	4.5≧	White， Black
ECS	22±2	107.9±22.6	69≦	120≦	6≧	White， Blue, Green, Yellow, Pink
ECZ	16±1.5	78.5 / + 19.6, -9.8	69≦	100≦	9≧	White, Grey
EFD	17.5±2	39.2 / + 14.7	39≦	100≦	7≧	White	Super Soft Type
EMO	50±5	12.75≦(kPa)	177≦	70≦	4≧	Black	Semi-rigid Type
EMS	45±3	9.81≦(kPa)	98≦	50≦	15≧	White	Semi-rigid Type
EMT	60±5	14.71≦(kPa)	127≦	-≦	15≧	White, Grey	Semi-rigid Type
EMM	52±3	225.6±39.2(kPa)	98≦	100≦	3.5≧	Black
CFH-20	30±3	-	98≦	100≦	-	White, Black

MoltoPren

Product Name	Density (kg/m3)	Hardness (N)	Tensile Strength (kPa)	Elongation (%)	Compression Set (%)	Color	Characteristics
SC	31±5	-	98≦	100≦	-	White， Blue, Grey, Black, Yellow, Pink, Green, Sky Blue
SM-55	57.5±5	-	98≦	100≦	-	White， Black, Grey
MF-8	30±5	-	49≦	100≦	-	Black, Yellow	Filter Type
MF-13	30±5	-	98≦	150≦	-	Black, Yellow	Filter Type
MF-20	30±5	-	98≦	150≦	-	Black, Yellow, White	Filter Type
MF-30	30±5	-	98≦	200≦	-	Black, Yellow	Filter Type

Sound Absorption / Insulation

Calmflex Series

Product Name	Density (kg/m3)	Hardness (N)	Tensile Strength (kPa)	Elongation (%)	Low Combustibility (FMVSS302)	Characteristics
F2	25±2	127.5±19.6	78≦	100≦	Passed	Light weight, less expensive and used in various fields.
F4	23±2	-	78≦	120≦	Passed	With skin, superior mid-range frequency sound absorption
F-9L	28±2	68.6±29.4	49≦	80≦	Passed	Superior heat resistance
F-9M	35±2	98.1±29.4	49≦	80≦	Passed	Superior heat resistance and damping
F-KK	16±2	50±19.6	50≦	200≦	Passed	Super light weight, less expensive and used in various fields.
F-140	140±25	-	80≦	120≦	Passed	Superior damping and flexibility
UGR	60±6	40±20	30≦	120≦	Passed	Superior sound insulation and absorption
BF-150	150±50	⋇2	400≦	100≦	Passed	Superior vibration proof with low density
BF-300	300±50	⋇2	800≦	100≦	Passed	Superior vibration proof
BF-500	500±50	⋇2	1000≦	80≦	Passed	Superior vibration proof
BF-700	700±50	⋇2	1200≦	60≦	Passed	Superior vibration proof with high density

Water / Air Sealing Foam

Sealflex Series

Product Name	Material Base	Density (kg/m3)	Air Permeability (cc/cm/sec)	Water Sealing (50% Compressed) (hr)	Characteristics
ESH	Polyurethane	45±5	10≦	24≦(100mmAq)	Hydrolysis resistance, high water sealing foam
ESH-2	Polyurethane	39±4	10≦	24≦(60mmAq)	Hydrolysis resistance, high water sealing foam
ESH-4	Polyurethane	45±5	10≦	24≦(25mmAq)	Hydrolysis resistance, high water sealing foam, Low combustibility foam
EKS	Polyurethane	28±3	5≦	24≦(100mmAq)	Light weight, water sealing foam
EHW	Polyurethane	23±2	15≦	-	Light weight, high air sealing foam
EST-3	Polyurethane	34±4	10≦	-	High air sealing foam
RP-300S	Polyolefin	30±10		168≦(100mmAq)*	Weather and chemical resistance, Open cell foam
CP-3	Polyolefin	33±8		-	Weather and chemical resistance, Sheet roll foam
CP-3S	Polyolefin	29±10		168≦(100mmAq)*	Weather and chemical resistance, Sheet roll foam
E-7010	EPDM Foam	110±10		24≦(100mmAq)* (Compressibility 80%)	Weather and chemical resistance, Semi-open cell foam
E-8000	EPDM Foam	110±10		24≦(100mmAq)* (Compressibility 80%)	Weather and chemical resistance, Semi-open cell foam
E-4088	EPDM Foam	110±30		400≦(100mmAq)	Weather and chemical resistance, Closed cell foam
